quietpeen
Well-known member

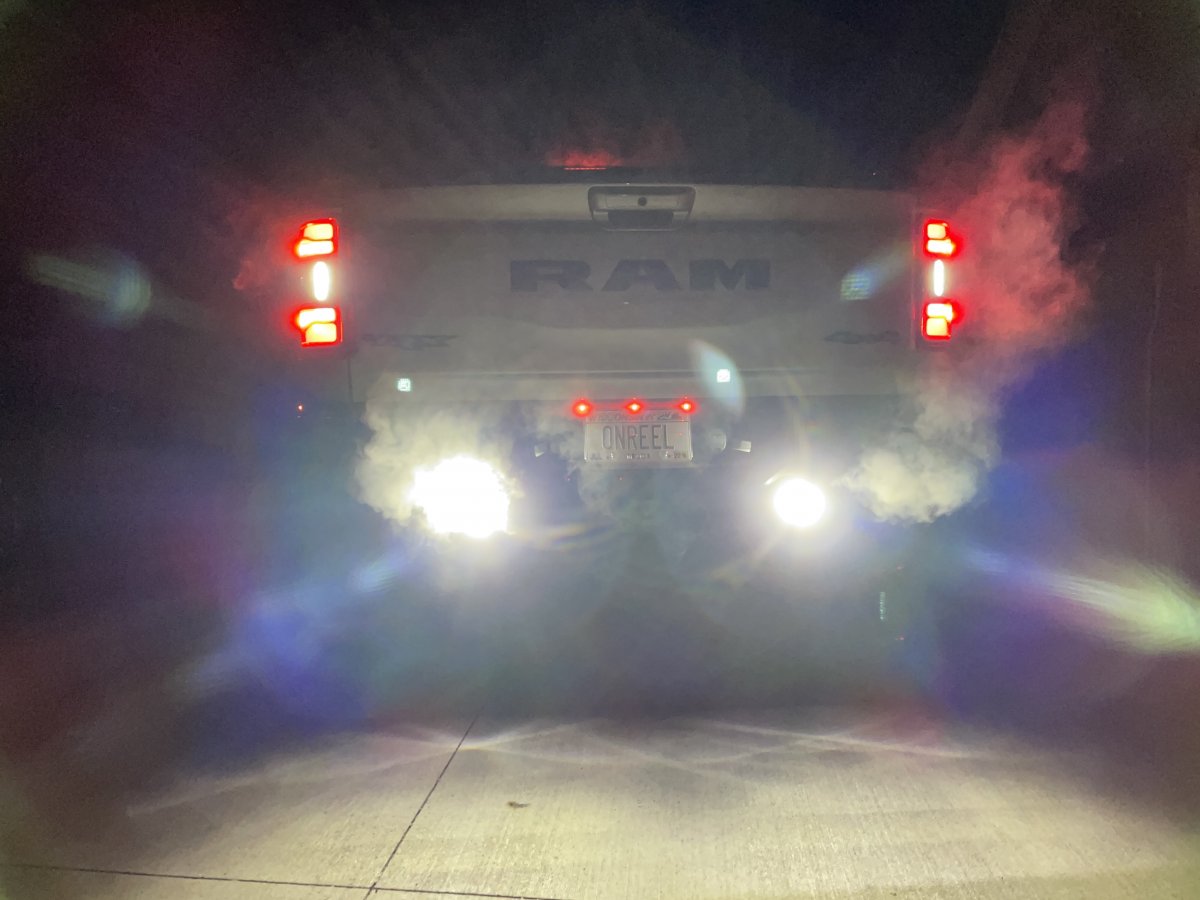

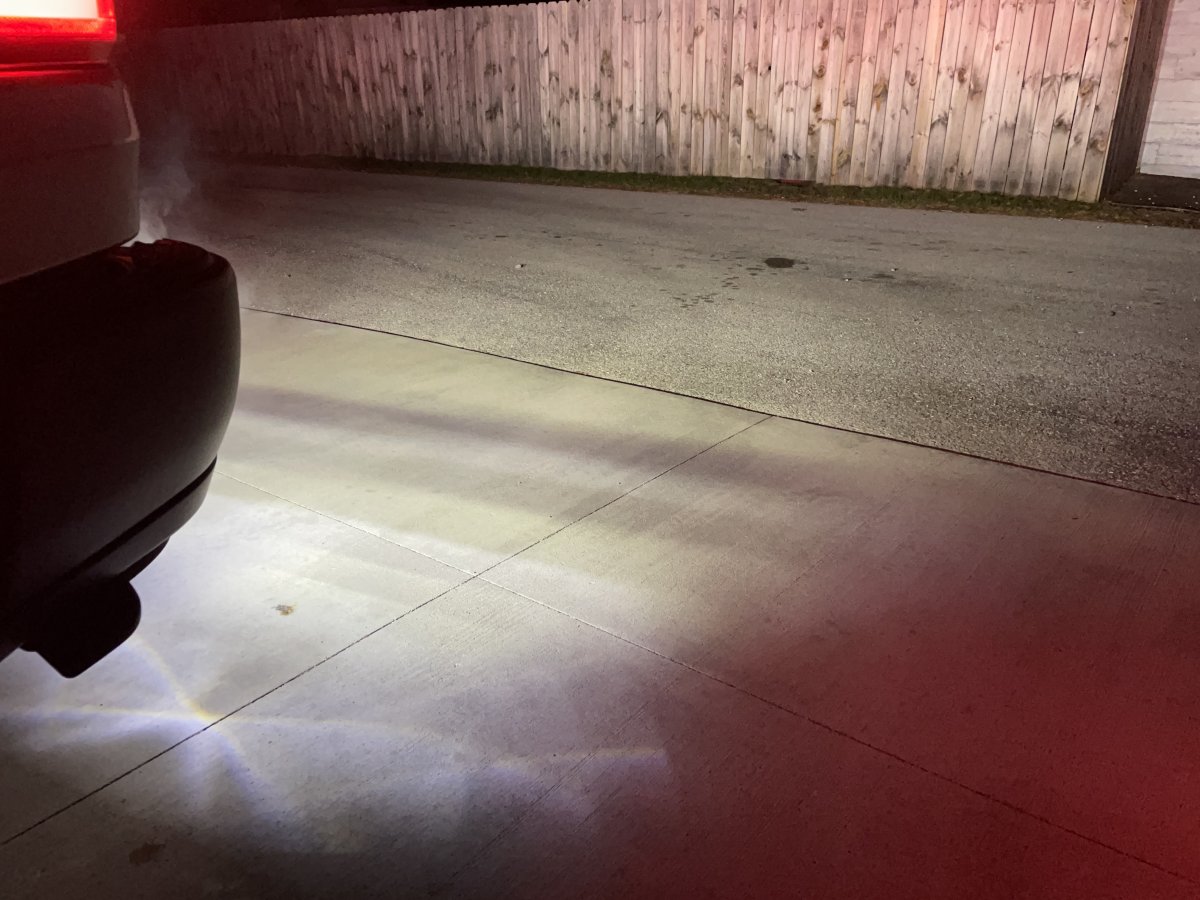

that's awesome. I got the wide pattern
Reverse Lights For TRX And 5th Gen 1500's Running Our Tow Hook Brackets
- Thread starter Shifts And Grins
- Start date
quietpeen
Well-known member
I finally got my harness tested and it seems to work as intended. There were no errors or warnings that popped up but i just tested in my garage. I can’t get them fully installed till I get my tow hooks painted which will hopefully be this weekend.
quietpeen
Well-known member

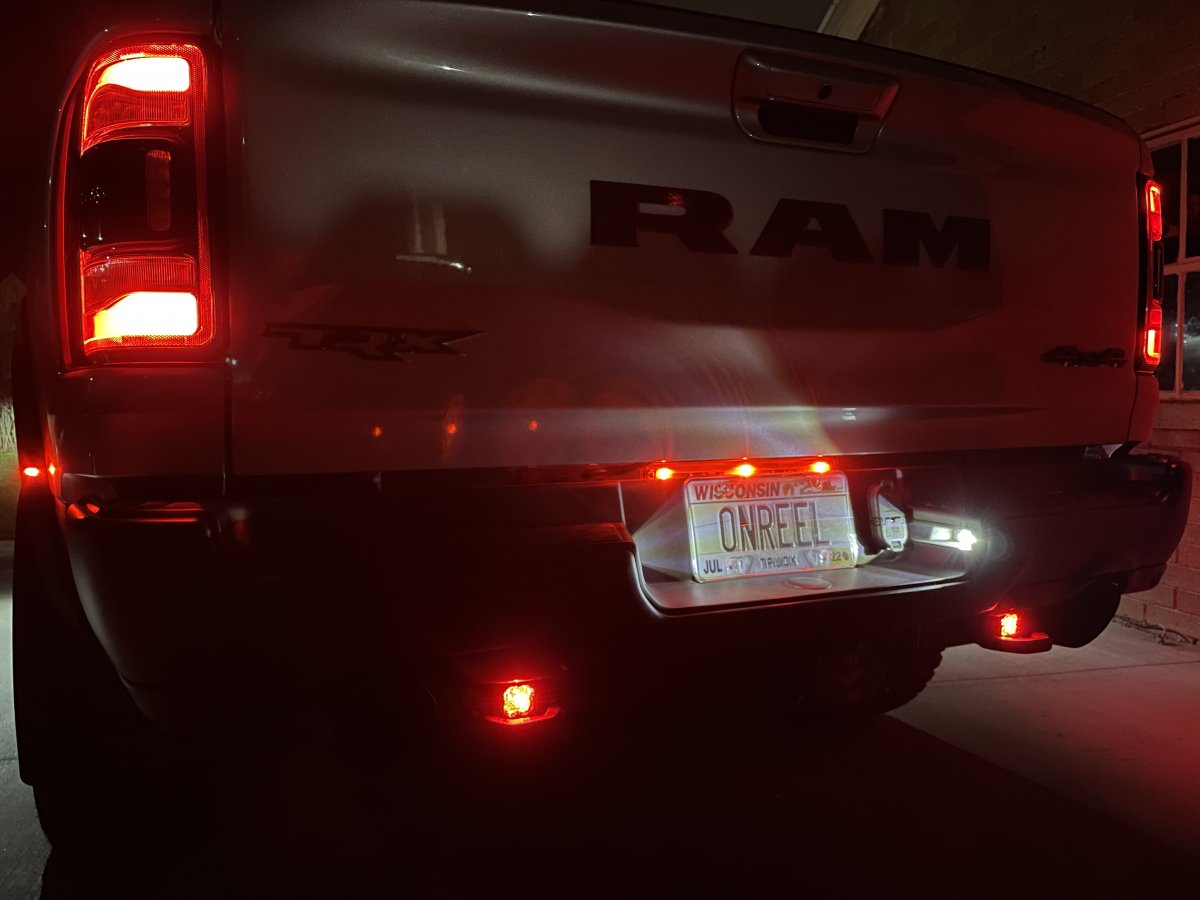

For reference as i stated before i bought a 4 pin curt adapter, not the 5 pin so i had to tap the reverse lights off the center white wire on the 7 pin. This is a bigger wire than the wires in the 4 pin so I used 16 gauge wire and also added an inline fuse on the power because Diode Dynamics said you should always put one. Right now it has a 20a fuse but I’m going to drop it down to a 10a. Instead of cutting off the 4 pin plug i decided to use it and bought a 4 pin trailer side plug. I connected the ground to the ground and then wired the red back lighting (blue wire on the Duetch connector) on the pods to the Green and yellow wires which are left turn signal/right turn signal and brakes.
Unfortunately I didn’t take pictures as I was doing this and now everything is taped and covered with wire loom so I can’t give much of a step by step but is for the most part straight forward.
Unfortunately I didn’t take pictures as I was doing this and now everything is taped and covered with wire loom so I can’t give much of a step by step but is for the most part straight forward.
OP
OP
Shifts And Grins
Active member
@quietpeen you're officially fired for not taking photos or video!
Just kidding. Great job and great description. I can't wait to see it all done.
OP
OP
Shifts And Grins
Active member
Plug and Play Harness is live on the webpage now. I only added the three I currently have built. If they are sold out, message me and I will get you on the list for the next run we are waiting for the materials for. They are going for $80. We also posted a link to the instructions in this thread on how to build it if you want to save some money.
OP
OP
Shifts And Grins
Active member
I posted them before I went to bed and they were sold out before I woke up. I have materials coming in to build more. They will be here Friday. I'll have the new run shipped out on Monday. I can open up the orders to better track the need/want for them and try to stay on top/ ahead to make it no lead time.
quietpeen
Well-known member
That’s awesome that they sold out that quick for you. I guess you are going to be busy though.
OP
OP
Shifts And Grins
Active member
More materials will be delivered any minute now. We will get several more harnesses built out before the weekend is done.
OP
OP
Shifts And Grins
Active member
@quietpeen any pictures yet?
quietpeen
Well-known member
not yet. One of the hold ups was getting my tow hooks painted which I was finally able to do yesterday.
OP
OP
Shifts And Grins
Active member
You're killin me smalls!!!
Looking forward to seeing it!
OP
OP
Shifts And Grins
Active member
That’s awesome!!!
quietpeen
Well-known member
That is awesome
quietpeen
Well-known member
Found this on youtube
OP
OP
Shifts And Grins
Active member
I just finished watching it. That was a very thorough video.
quietpeen
Well-known member
He makes good install videos.
OP
OP
Shifts And Grins
Active member
Yes he does. I love that he is a factory tech too.
quietpeen
Well-known member
His install video is what convinced me to do the Adaptive Cruise ControlYou're killin me smalls!!!
OP
OP
Shifts And Grins
Active member
We added two new options tonight. They have been super popular so far. THey are automatic only options. Super easy install. 100% plug and play. You T in to the trailer harness like our other plug and play kit and you plug in to the lights. Done. It is similar to the harness @OnTheReel made.
Pro Lights with 2 Powder Coated Brackets and Auto Only Plug And Play Harness:
www.shiftsandgrinsfabrication.com
Sport Lights with 2 Powder Coated Brackets and Auto Only Plug And Play Harness:
www.shiftsandgrinsfabrication.com
Pro Lights with 2 Powder Coated Brackets and Auto Only Plug And Play Harness:
***Auto Operation Only Kit with Harness***Reverse Light Brackets For Rear TRX Tow Hooks With Diode Dynamics SSC1 Pro Lights and Wiring Harness | Shifts and Grins Fabrication LLC
***There is currently a limited supply of these in stock. These kits will ship within two business days of order while supplies last**** These will work on the Ram TRX or any 4th or 5th Gen Ram 1500 running our Rear TRX Tow Hook Brackets. These Brackets mount to the two most rearward bolts...
Sport Lights with 2 Powder Coated Brackets and Auto Only Plug And Play Harness:
***Auto Operation Only Kit With Harness***Reverse Light Brackets For Rear TRX Tow Hooks With Diode Dynamics SSC1 Sport Lights and Wiring Harness | Shifts and Grins Fabrication LLC
***These sets now have a 1-2 week backorder while we wait for more lights that we have on order. Orders will be filled on a first come first served basis.****We are now taking orders for our Reverse Light Brackets for Rear TRX Tow Hooks. These will work on the Ram TRX or any 4th or 5th Gen Ram...
